PVC (Polyvinyl Chloride or Vinyl)
DESCRIPTION
PVC is a high-strength thermoplastic material. It is widely used in applications such as pipe, medical devices, wire and cable insulation. PVC has excellent chemical resistance. It is the world’s third-most widely produced synthetic plastic polymer after polyethylene and polypropylene. It is available in rod, tube, plate, and sheet. PVC is very durable and easy to process.
PRIMARY SOURCE
About the supplier:

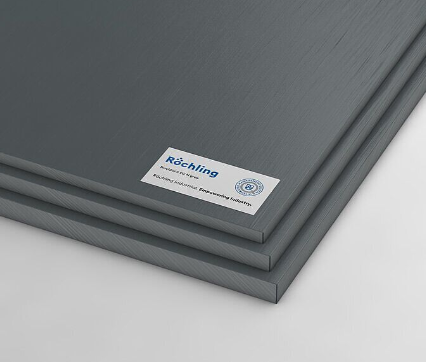

Rochling, SE, Co. is our primary source for standard PVC shapes.
NOTE: It is also available as a graphic material, foamed which reduces the weight by 30% and is available in all the primary sign colors. See PVC Foam under Sign Materials. Roechling uses the trade name of Trovidur® to brand PVC.
PVC –Properties:
- Self-extinguishing after the flame is withdrawn
- High chemical resistance
- Bondable
- High mechanical strength
- Thermal plasticity
- Resistant to outdoor weathering
Sizes Available
- PVD Rod: 0.250”– 6.0” Diameter
- PVC Sheet: 0.062-2.00” Thickness
- 48 or 60” Width 96 or 120” Length
Technical Specifications Trovidur EC-N - ASTM
General Properties
| Property | Test Method | Unit | Guideline Value |
|---|---|---|---|
| Density | DIN EN ISO 1183-1 | g/cm³ | 1.44 |
| Water absorption | DIN EN ISO 62 | % | 0.2 |
| Flammability (Thickness 1... 4 mm) | DIN 4102 | B1 | |
| Flammability from 3 mm | UL 94 | V0, 5VA | |
| Flammability from 1 mm | UL 94 | V0, 5VB | |
| Flammability (Thickness 1... 10 mm) | NF P 92-501 | M1 | |
| Flammability (Thickness 1.5... 12 mm) | BS 476 Part 6 | Class 0 | |
| Flammability (Thickness 1.5... 12 mm) | BS 476 Part 7 | Class 1 | |
| Flammability (Thickness 1.5... 6 mm) | EN 13501-1 | B-s3d0 | |
| WRAS (Thickness 1... 6 mm), grey | BS6920-1 | listed |
Mechanical Properties
| Property | Test Method | Unit | Guideline Value |
|---|---|---|---|
| Yield stress | DIN EN ISO 527 | MPa | 55 |
| Elongation at break | DIN EN ISO 527 | % | 20 |
| Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 3000 |
| Notched impact strength | DIN EN ISO 179 | kJ/m² | 4 |
| Shore hardness | DIN EN ISO 868 | scale D | 82 |
| Ball indentation hardness | DIN EN ISO 2039-1 | MPa | 110 |
| Compressive strength | DIN EN ISO 604 | MPa | 75 |
| Bending strength | DIN EN ISO 178 | MPa | 80 |

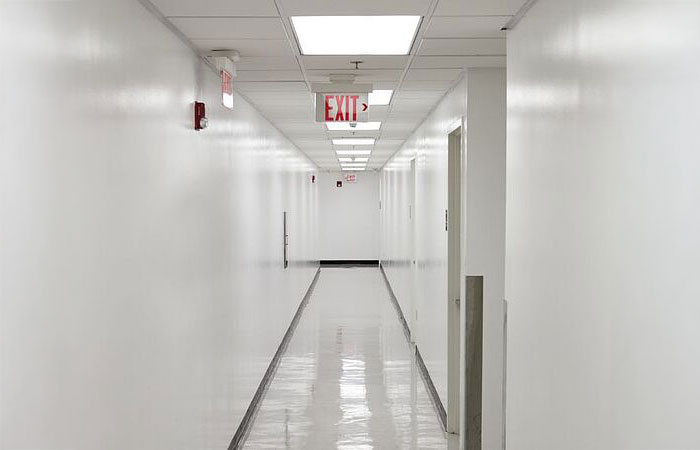

PVC Sheet used to line the walls to maintain high hygiene for a demanding public area.
