PI Polyamide (Vespel®)
DESCRIPTION
Polyamide commonly known as Vespel® or PI is a polymer that exhibits high temperature performance exceeding 550 degrees F remaining mechanically tough and chemically resistant. Applications include aerospace parts and bearings, flexible printed circuits, heaters, bar code labels, pressure sensitive tape, electrical insulation, safety, PCB stencils, loudspeaker components, high-density electronic interconnects, high-temperature mechanical seals, photovoltaic modules. Vespel is a trade name of Dupont®. It makes an excellent metal replacement for harsh environments.
Note: Due to the high cost and variable lead times, Meyer Plastics will need to source this material once we understand your application. Call, text, or email us and we will get right on your solution.
PRIMARY SOURCE
About the supplier:

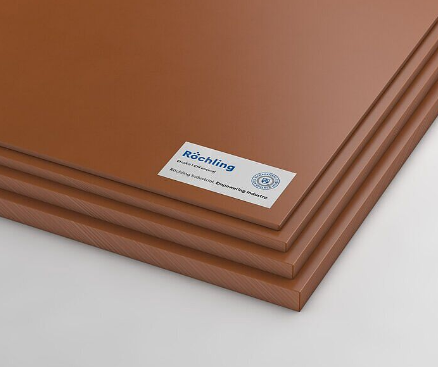

Rochling, SE, Co is our primary source for standard Polyamide shapes
Characteristics
- Heat resistant
- High mechanical strength
- low creep tendency
- High impact resistance
- High stiffness
- Good dimensional stability
| Property | Test Method | Unit | Guideline Value |
|---|---|---|---|
| Mechanical properties | |||
| Static Coefficient of Friction | ASTM D1894 | 0.278 | |
| Tensile Strength | ASTM D638 | psi | 20321 |
| Tensile Modulus | ASTM D638 | ksi | 499 |
| Elongation at Break | ASTM D638 | % | 14.2 |
| Flexural Strength | ASTM D790 | psi | 23967 |
| Flexural Modulus | ASTM D790 | ksi | 561 |
| Thermal properties | |||
| Coefficient of thermal expansion | ASTM E831 via TMA from -40°C to 149°C | 41 | |
| Electrical properties | |||
| Dielectric constant @ 1MHz | ASTM D150 | 3.3 | |
| Dielectric constant @ 10GHz | IEC 61189-2-721 | 3.4 | |
| Dielectric constant @ 40GHz | IEC 61189-2-721 | 3.3 | |
| Dielectric constant @ 100GHz | IEC 61189-2-721 | 3.2 | |
